Atola Technology Insight Forensic – DS2

Description

***  CALL FOR A PRICE QUOTE TODAY ***

Atola Technology Insight Forensic offers complex data retrieval functions along with utilities for manually accessing hard drives at the lowest level, wrapped in a very simple and efficient user interface.

The tool is developed by a team of industry renowned data recovery engineers in collaboration with law enforcement agencies and forensic experts from around the globe.

Atola Technology Insight Forensic system includes:

• Atola Technology Insight Forensic software (runs on any Windows PC or laptop)

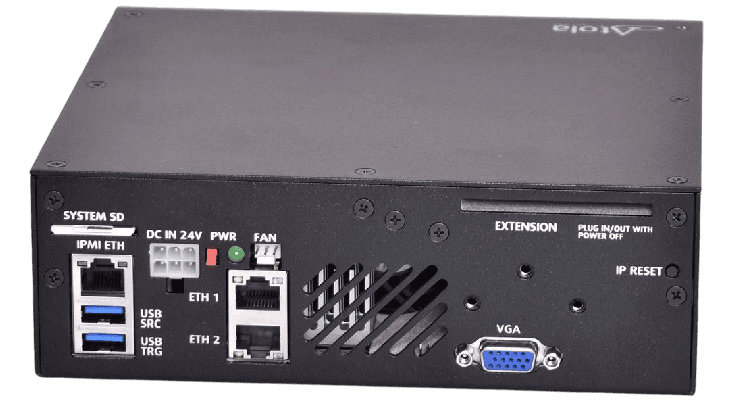

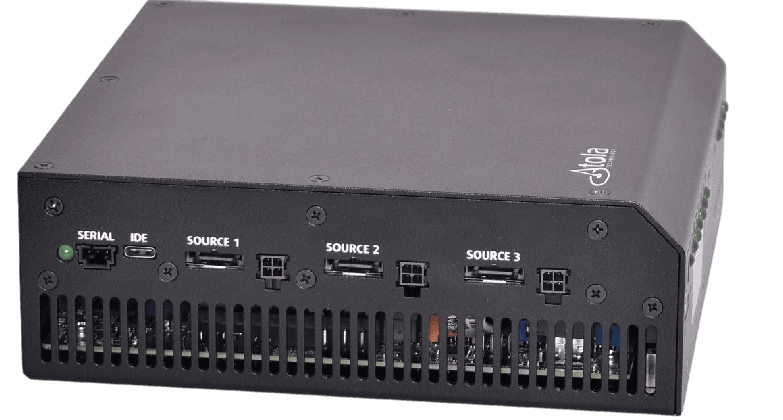

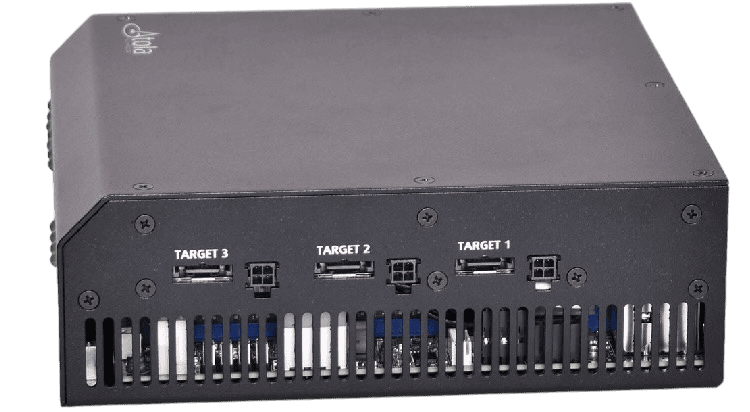

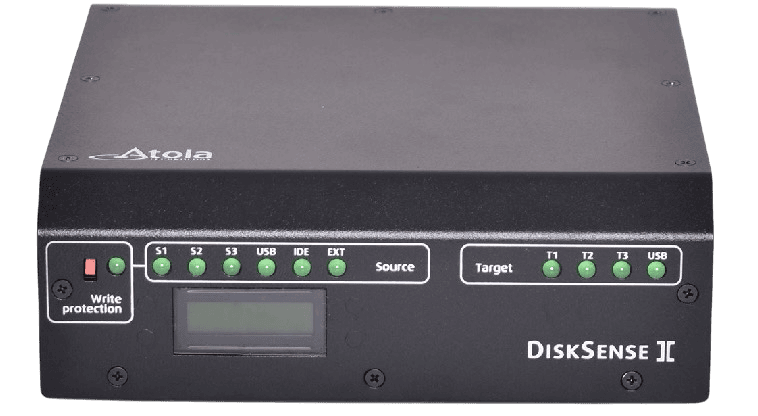

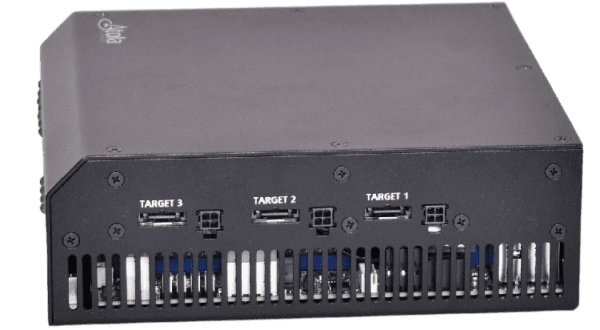

• DiskSense hardware unit
• Hardware extensions (optional)

Forensic and E-Discovery solution

All features of the system are designed to support damaged media. Where other Forensic data acquisition products stall or abort on media errors, Atola Technology Insight Forensic can acquire a usable image.

When dealing with good (non-damaged) media, Atola Technology Insight Forensic acquires data faster than any other data acquisition equipment commercially available.

The system has several key features for data capture in forensic and e-discovery cases:

• Fastest in industry imaging speed up to 520 MB/s
• High performance multi-pass imaging for damaged drives
• In-depth Automatic HDD diagnostics
• Extraction of unknown ATA Passwords
• Case management system prepares acquisition reports automatically
• Hash calculation: MD5, SHA1, SHA224, SHA256, SHA384, SHA512
• Forensic data erasure methods including DoD 5220.22-M, Secure Erase, NIST 800-88, Pattern Erase
• File recovery for NTFS, APFS (with encrypted volumes), Ext 2/3/4, HFS, HFS+, ExFAT, FAT16, FAT32
• Support for SATA, IDE, SAS, USB media
• Support for Apple PCIe (2013 – recent models) and M.2 PCIe SSDs via Atola extension modules
• Built-in write blocker
• Optional 10Gb Ethernet via extension modules

Use case: Insight as a primary imaging tool in forensic investigations

Our clients from the Ontario Provincial Police explain how Insight’s functionality makes it essential to their investigation process.

Derek Frawley and John Farrugia spoke at the Techno Security & Digital Forensics Conference in Myrtle Beach on June 6, 2017.

Acquiring data from damaged media

1. HDD Diagnosis

A successful acquisition job starts with accurate diagnosis of the media. The Atola Insight Forensic is the ONLY product in both data recovery and forensic industries with the ability to accurately evaluate a hard drive’s health and pinpoint specific problems. This feature puts our users at a major advantage by enabling them to take all factors into account before moving forward with data acquisition.
See the Diagnosis page for details

2. ATA Password Removal and Firmware recovery

The system properly recognizes locked hard drives and allows for a fully automated extraction or removal of an unknown ATA password with a single click of a button.
See the Password Removal page for details

When a hard drive is experiencing firmware problems, it is not usually accessible using conventional data acquisition tools or imaging utilities. The Atola Insight Forensic recognizes firmware corruption using its advanced diagnostic module and repairs it with the click of a button for supported HDD models. For non-supported HDD models, the Atola Insight recognizes firmware corruption and provides direct access to firmware files (modules), enabling expert technicians to manually repair the corruption.
See the Firmware Recovery page for details

3. HDD Duplication / Backup Image Creation

Extracting every fragment of data from hard drive is a crucial part of the data acquisition process. The Atola Insight’s imaging/imaging system allows the user to completely customize the imaging process to suit each job, even when dealing with damaged or unstable media.

This module now comes standard with SELECTIVE HEAD IMAGING, allowing the operator to identify the status of individual read/write head and create an individual imaging approach for each one.
See the Disk Imaging page for details

4. File Recovery

File recovery is the last phase of most data acquisition jobs. The Atola Insight’s file recovery engine is simple, intuitive, and effective. It integrates seamlessly with Disk Imaging and Case Management systems to effectively extract data.
See the File Recovery page for details

Advanced password removal capability

Atola Insight Forensic automatically removes ATA passwords from hard drives in just 2 minutes. This highly complex feature can be executed by the operator with one click of a button and the password is displayed after it is removed whenever possible. See Password Removal page for details.

Well-rounded feature set

Atola Technology Insight Forensic comes equipped with a range of utility features for each step of the data acquisition process. These features include device configuration for modifying hard drive parameters, HDD current monitoring for continuous diagnosis, a disk editor for modifying hard drive data, and an add/remove password function. See Disk Utilities page for details.

Smooth case management from start to finish

Atola Technology Insight Forensic is the only data recovery product that was built with case management in mind. All functions are tied in to one-another and the system tracks and records every action taken with a given hard drive. If a session is stopped and the hard drive is disconnected from Atola Technology Insight and then later reconnected, the system will recognize the hard drive and give the operator the option to re-open the case. See the Case Management page for details.
